Wastewater Filtration & Recycling Systems
THE FUTURE OF WATER IS ceramic membrane FILTRATION

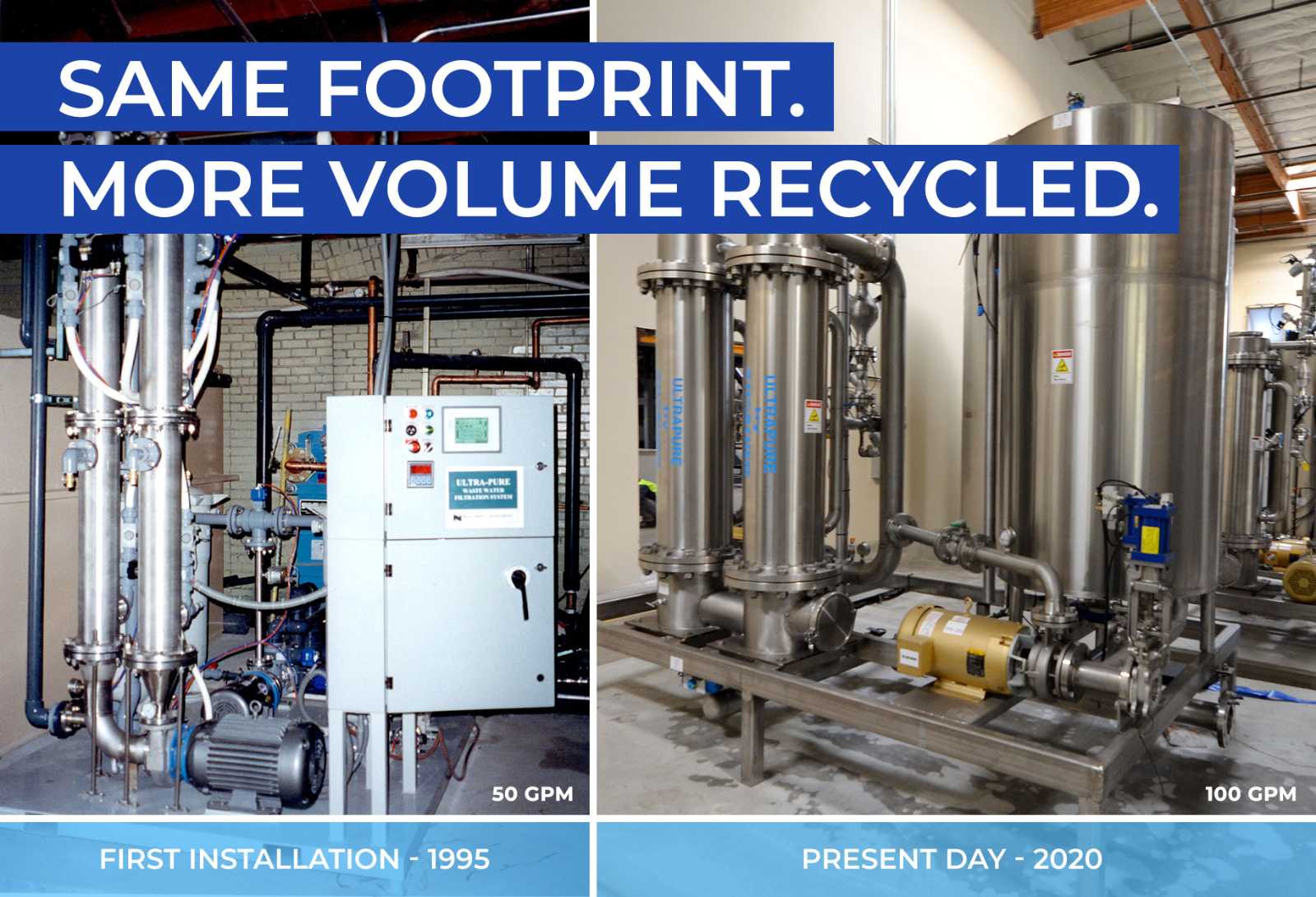

Norchem’s water technology division brings more than 30 years of innovation pedigree to smart water reclamation technology. Straight from our Skunk Works project team in Los Angeles, CA, Norchem developed one of the first “best in breed” Ceramic Membrane Filtration (CMF) and Reclamation Systems for industrial effluent waste streams in processing plants since 1995.
UltraPure® (CMF) System
Named UltraPure® as a nod to its Ultrafiltration capabilities…

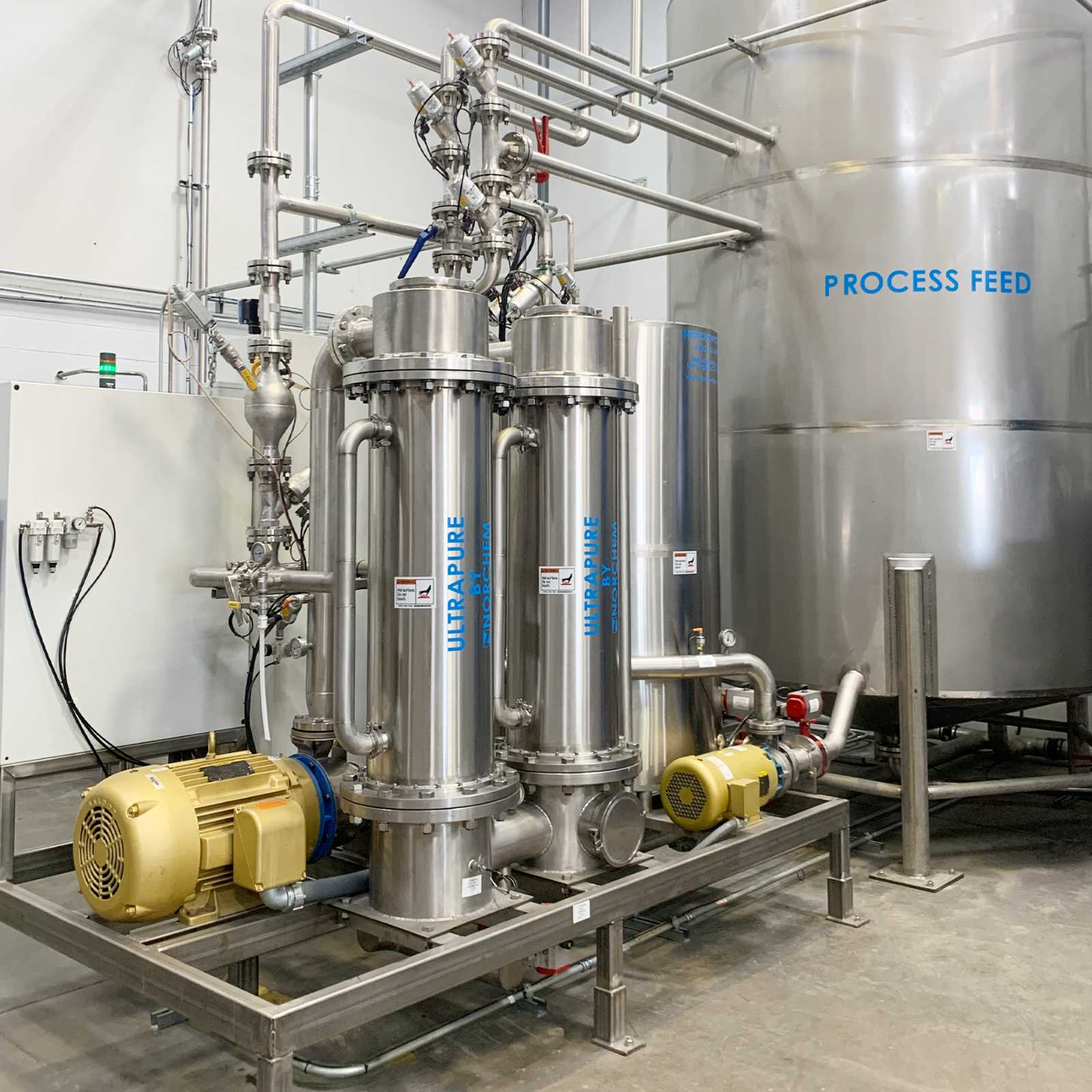

The UltraPure® Ceramic Membrane Filtration System produces high quality recovered water for applications in commercial laundry, food processing, and many others with no added treatment chemicals. The ultra-filtration process uses an innovative ceramic crossflow membrane design that can reclaim up to 85% of wastewater and 85% of wastewater heat.
The UltraPure® is designed to fit in any plant, big or small, with added capacity for future growth at less cost.
“At the top of Norchem, the technology and systems they design are second-to-none. They are the best in Water Recycling & Filtration innovation.”
CITY Laundering President Colin Wetlaufer
a worthwhile investment

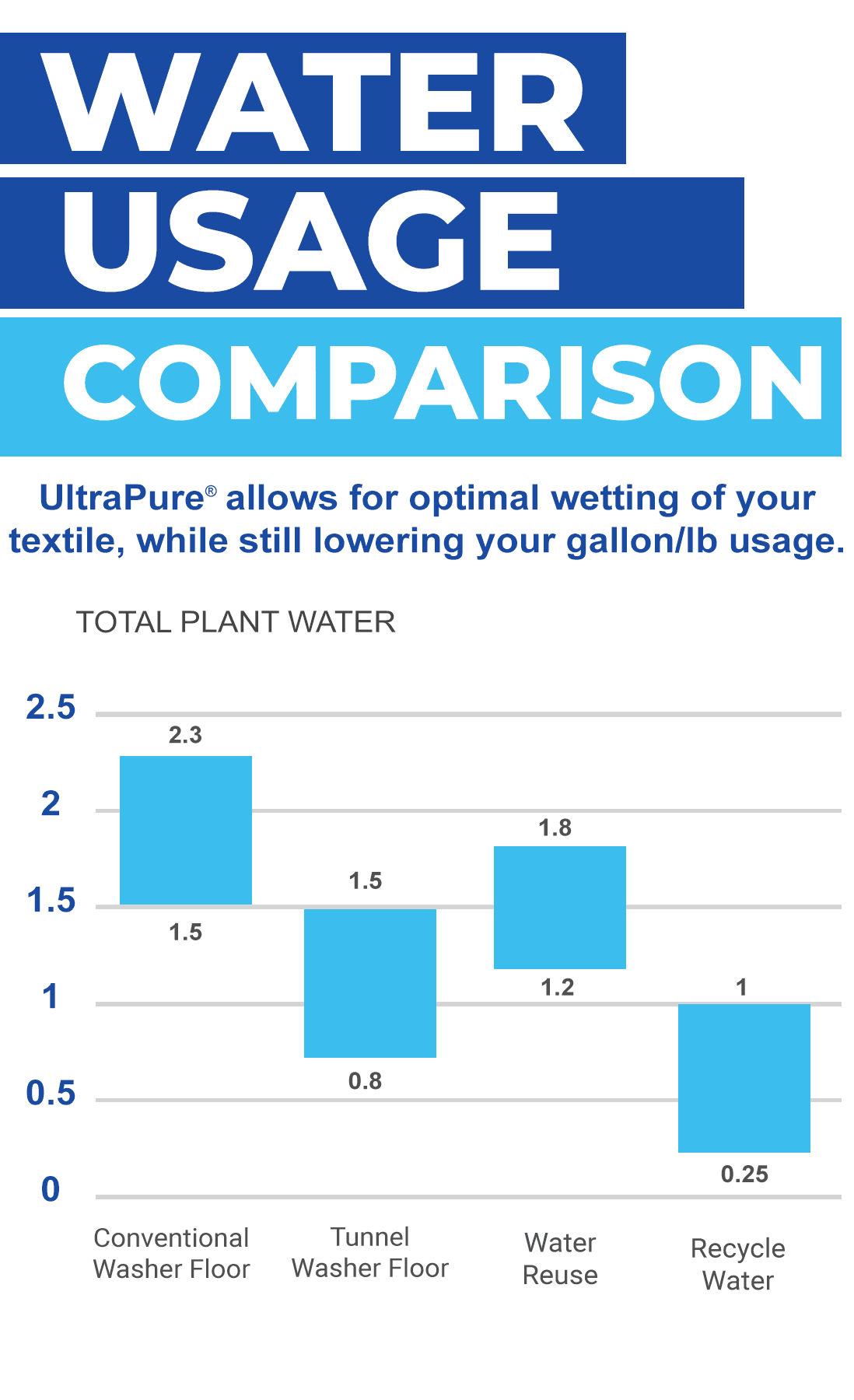

Proven to substantially reduce wastewater discharge by as much as 85% in most industrial applications where water can be reclaimed.
Water heating energy costs are expensive. This system minimizes Delta-T by up to 85%, eliminating the need for additional expense on water heating equipment.
Have you ever wondered if the city will shut-off your water? The UltraPure® will help sustain operations through a drought or public utility failure.
Avoiding high sewer connection or impact fees have allowed plants to open in jurisdictions and serve markets they otherwise would have never been able to access.
Environmental stewardship through resource conservation gives hope for future generations.

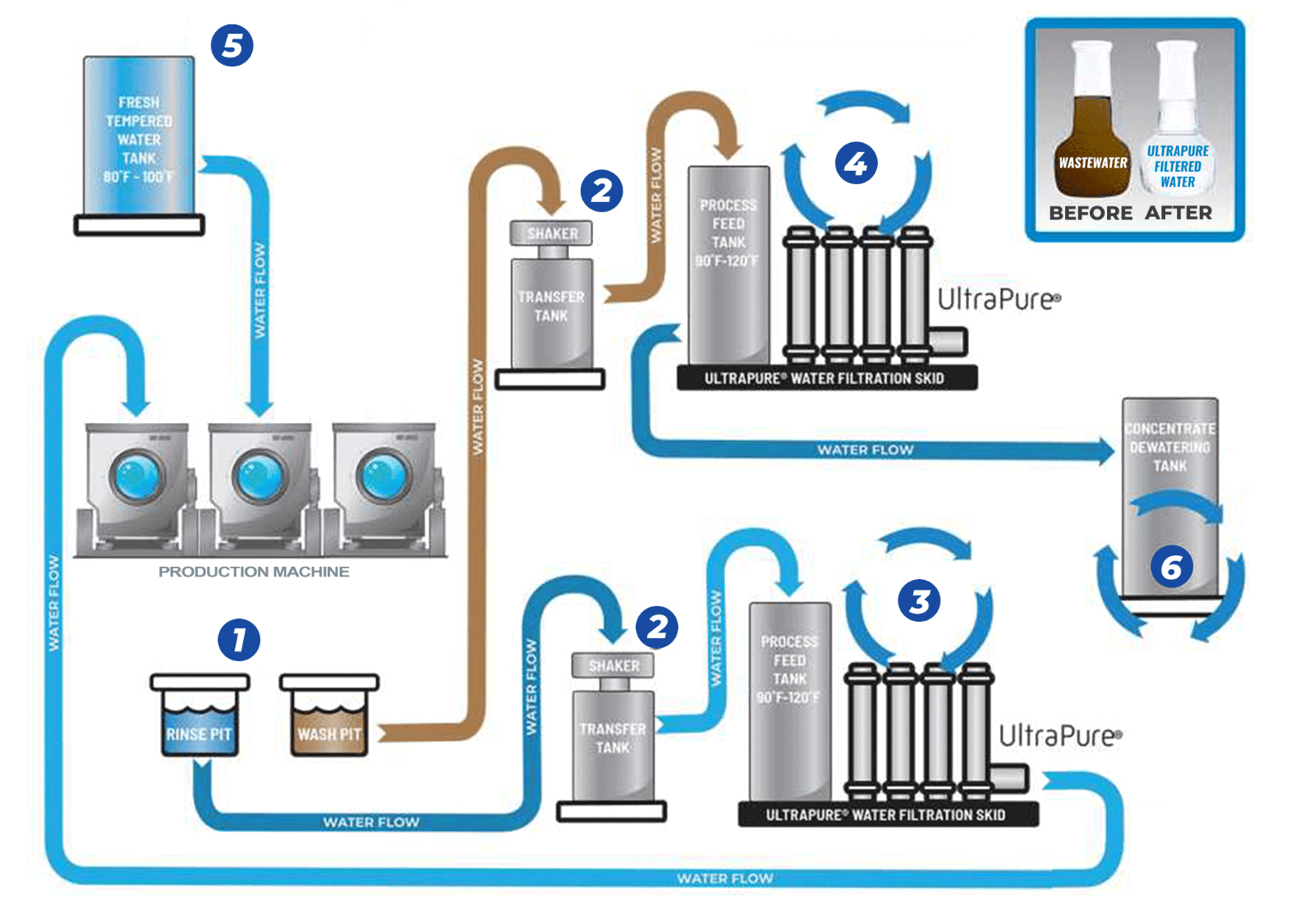

Wastewater is captured in the pit and pumped out before it would be discharged to sewer.
A process solids separating system removes suspended solids and other particulates from the waste stream.

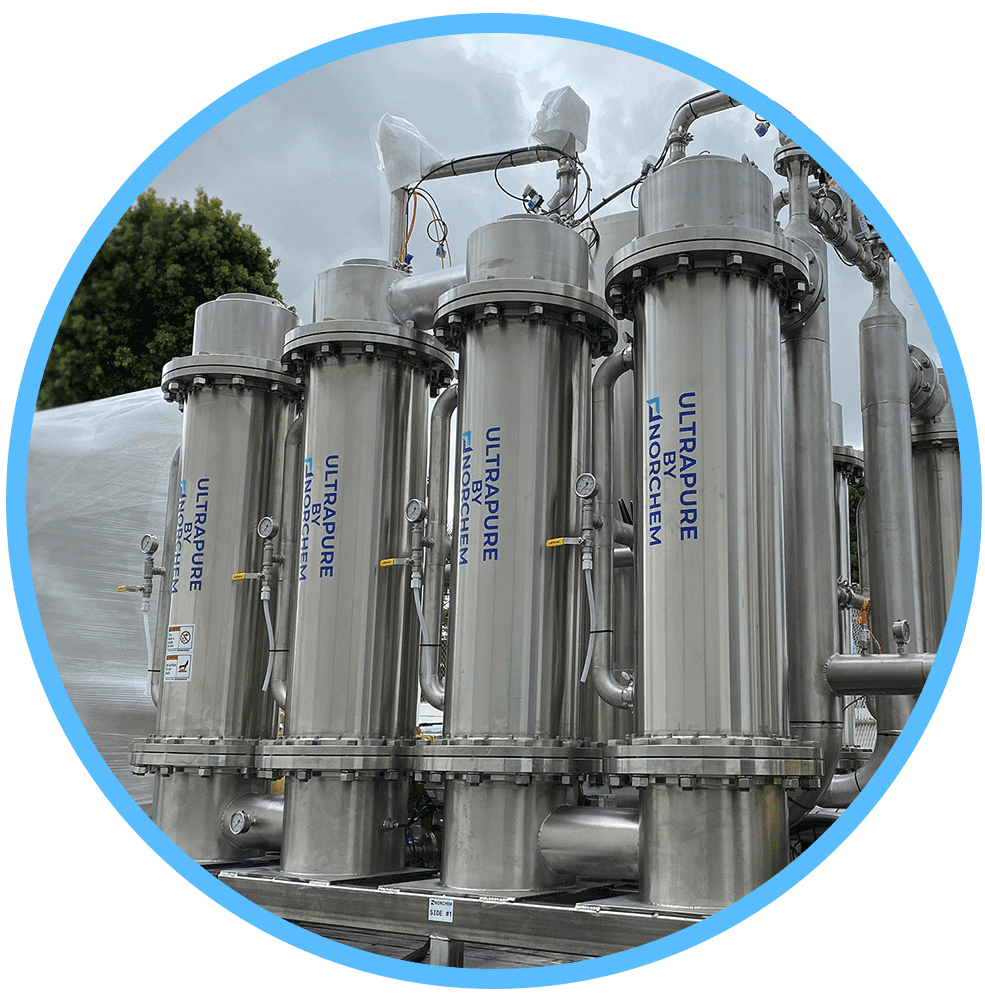

The water is then pumped at high velocity through cross flow ceramic membrane housings and the transmembrane pressure pushes the permeate water out of the sub-micron pores.
The retentate is sent via a return line back to the process feed tank to be fed through again.

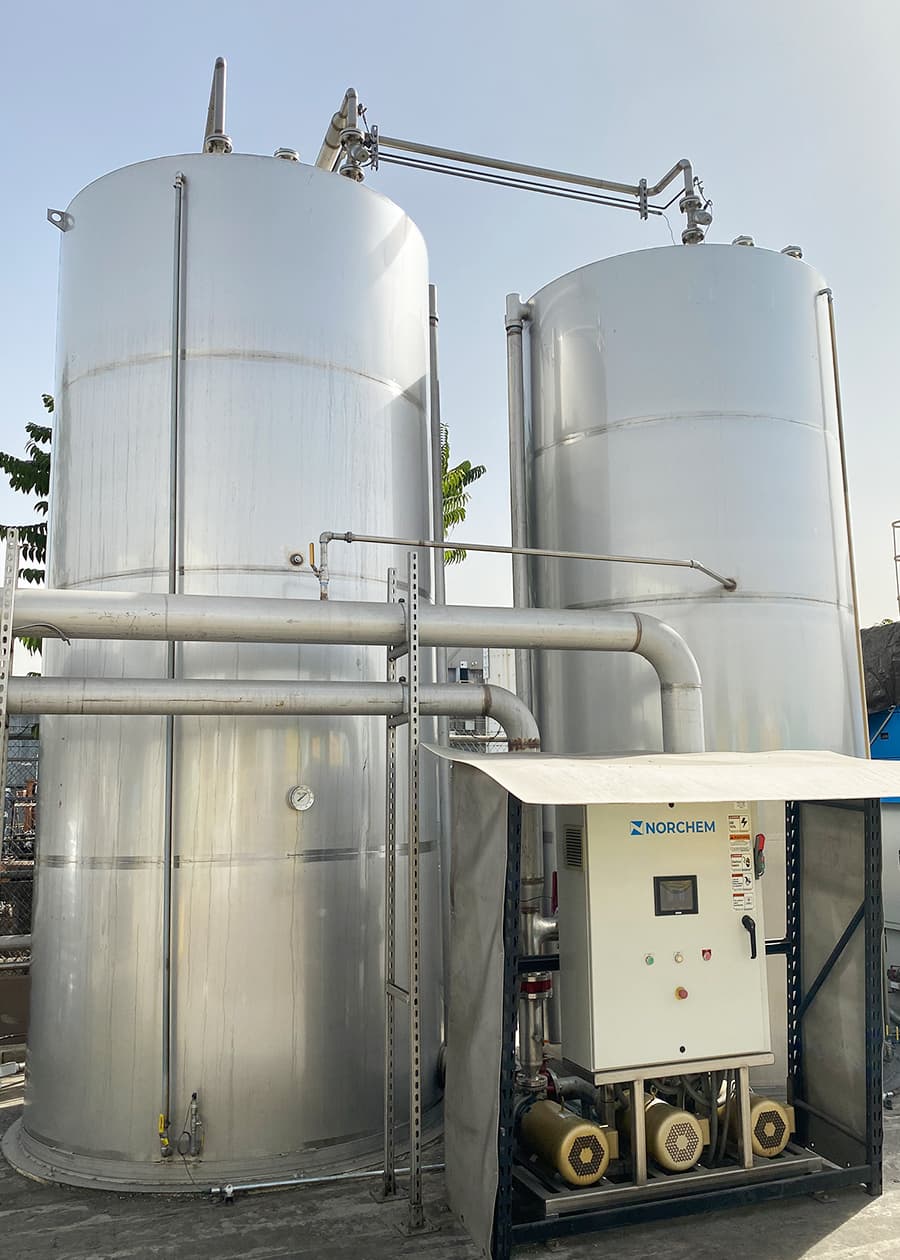

The permeate is sent to the recovered water tanks to be stored and pumped as needed back to the plant.
The concentrate left over in the feed tank is dewatered or metered to sewer at the end of each operating day.
COD up to97%
BOD up to93%
TSS up to100%
Oil and Grease up to99%
Precipitated Heavy Metals up to99%
Processes Wastewater Temperatures
up to 300F
Wastewater
between 0-14 pH
Ceramic membranes process Oil/Grease loads
above 1000 mg/L
Low pressures reduce power demand
40-90 psi
Automated Clean in Place (CIP) technology with an automated cleaning chemical delivery system for optimized membrane performance
Compact and modular with additional modules offered in various diameters and quantities for scalability
Proprietary industrial strength cleaning agents made by Norchem for routine clean cycles
Stainless steel industrial pumps for long term reliability
Remote internet access via ethernet for monitoring and serviceability
Touchscreen HMI data management and reporting
Plugs into existing tanks and pumps to move water including supply headers
Sensors monitor TDS, turbidity, operating pressures, and temperatures.
Connects with existing water inlets and outlets
UL & NEMA rated smart controls
Optional plug-in capability with tertiary treatment equipment for further dewatering and TDS removal
The entire system is manufactured in stainless steel and tested in the U.S.A exclusively by Norchem
The UltraPure® can significantly reduce the retentate without bypassing to sewer or using a filter press.
TAKE A CLOSER LOOK
Smart and Flexible Design

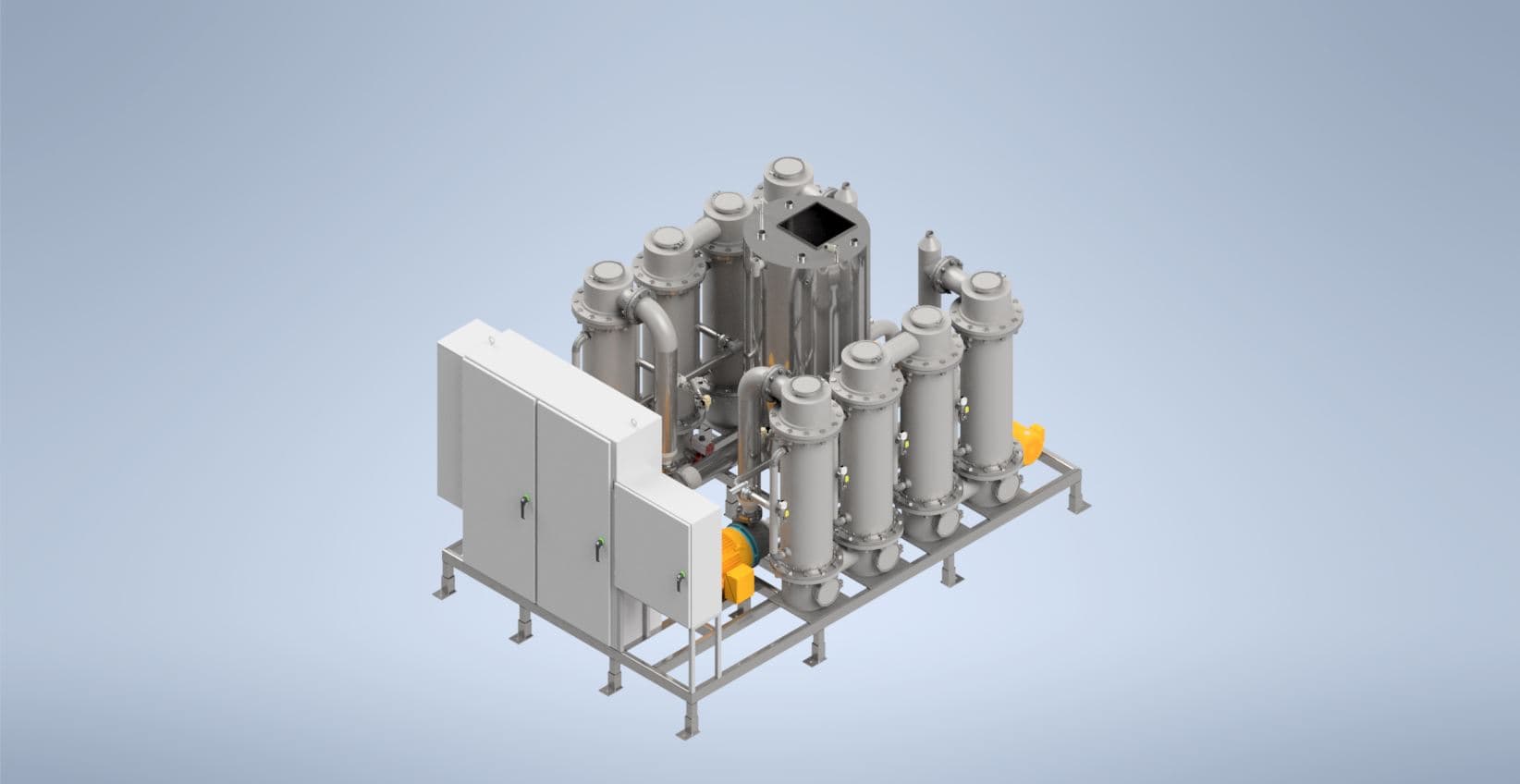

CAD 3D modeled and designed to fit in any plant for any application with added capacity for future growth at less cost.
application spotlight
Laundry Wastewater Reclamation
