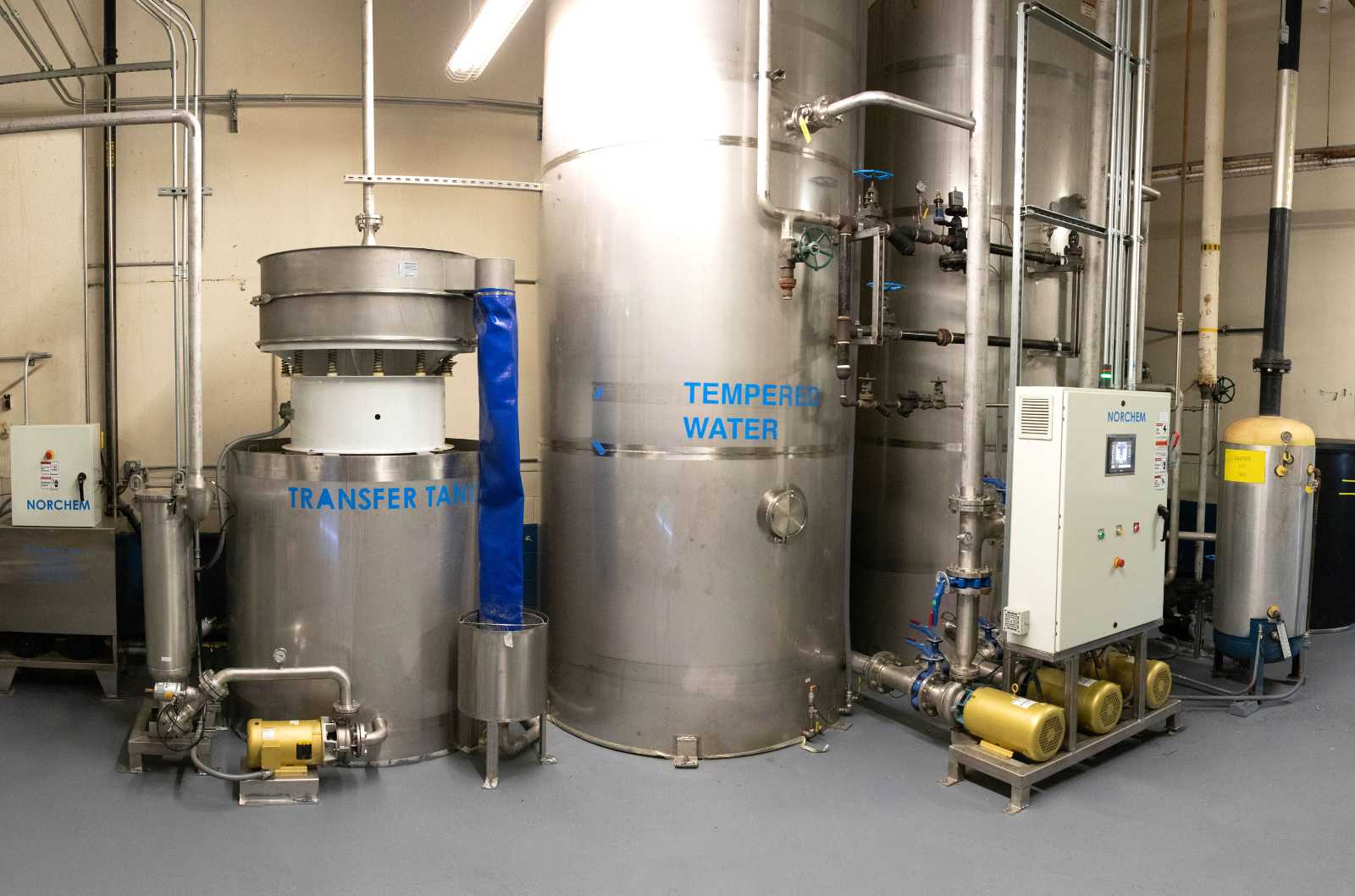

Hot & Tempered Water Systems
bring reliability to your water supply
Our line of process water systems are designed to store, distribute, and heat water. They are some of the most robust and reliable systems for any production environment. Our team of automation engineers design and build these systems based on customer specification.
hot & tempered
Reliability, Consistency, & Efficiency.
Since hot and tempered water is the life blood of most plant operations, we build our hot and tempered water systems to last.

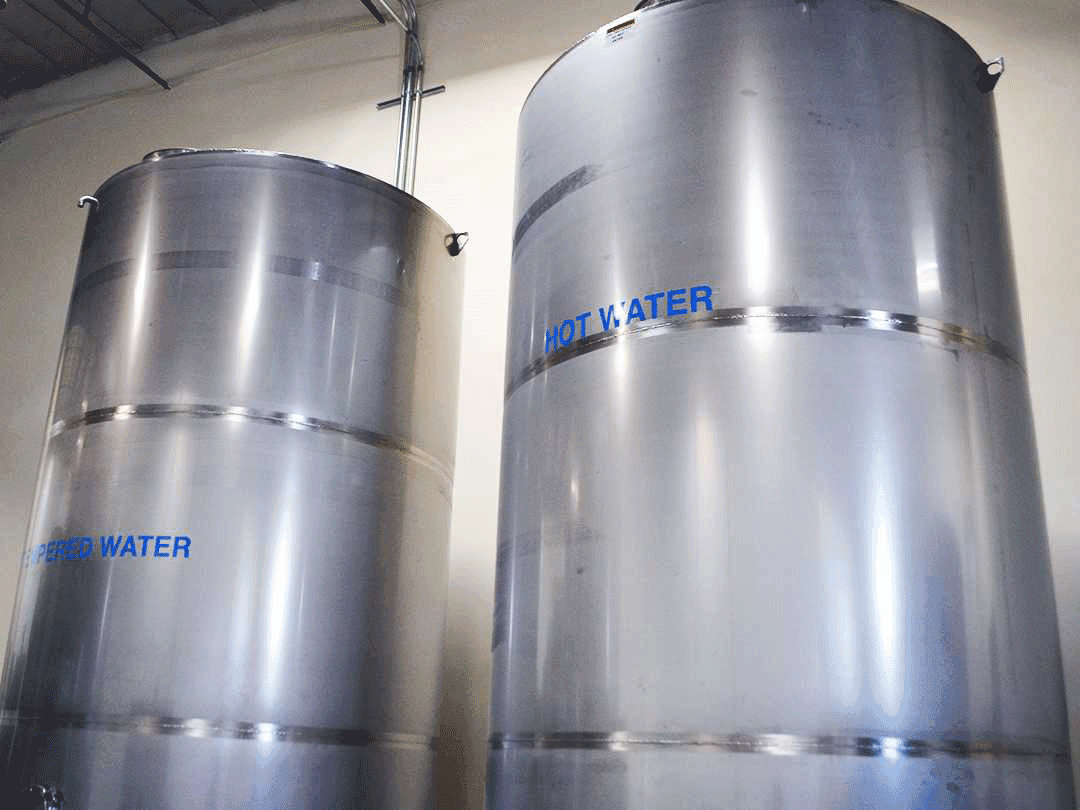

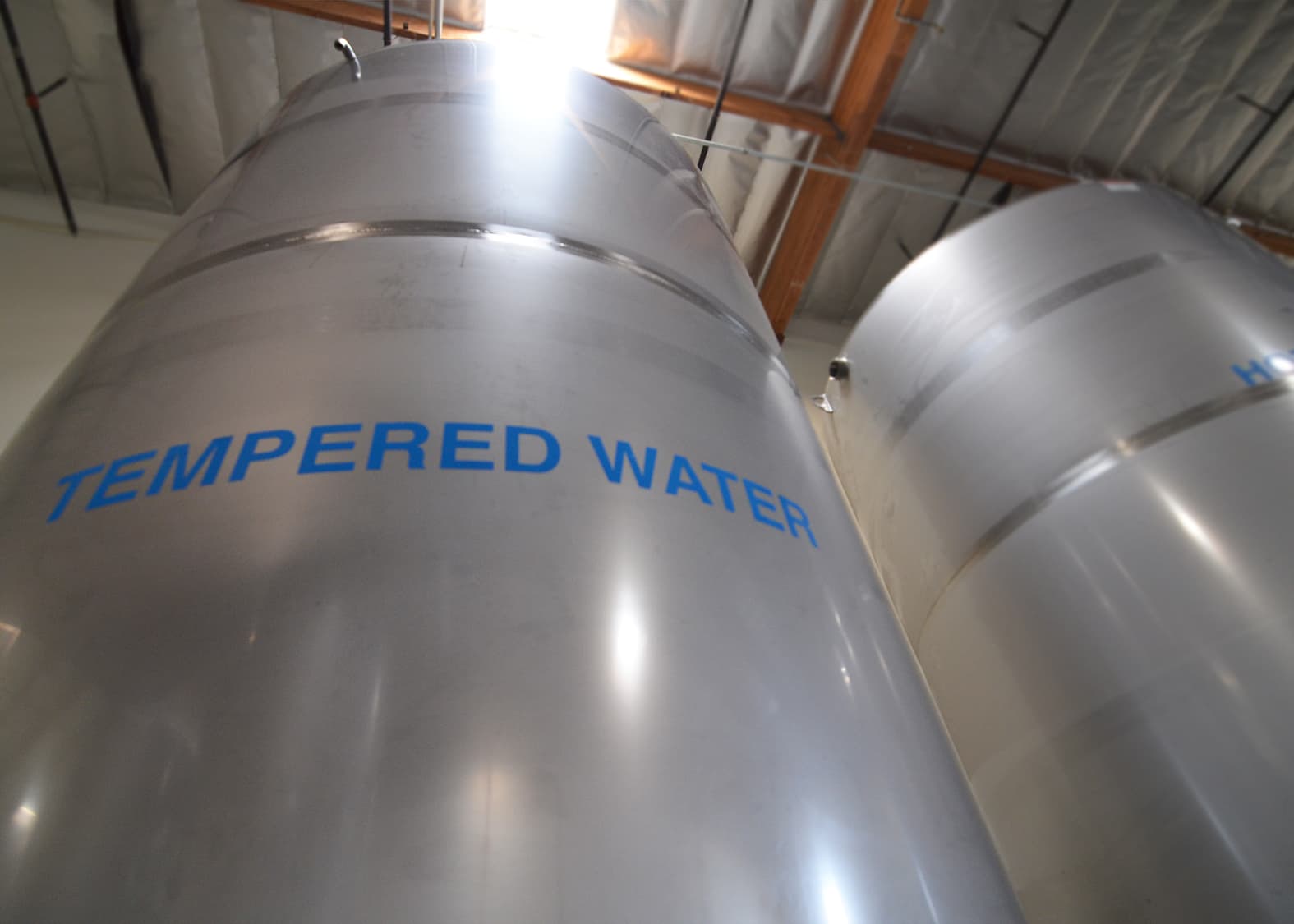

Water Storage Systems
Offering a wide range of water storage tank configurations to store process water or liquid solutions, all Norchem tanks are designed per customer specification based on the following options:
Technical Features
T304 or T316 stainless steel
Vertical or horizontal tanks with double-sided welds for durability
Flat or cone bottom | 200 gallons to 10,000 gallons capacity
Flanged or sanitary tri-clamp input and output fittings of any size
Transducers to monitor tank fluid levels
Seismic engineering certifications

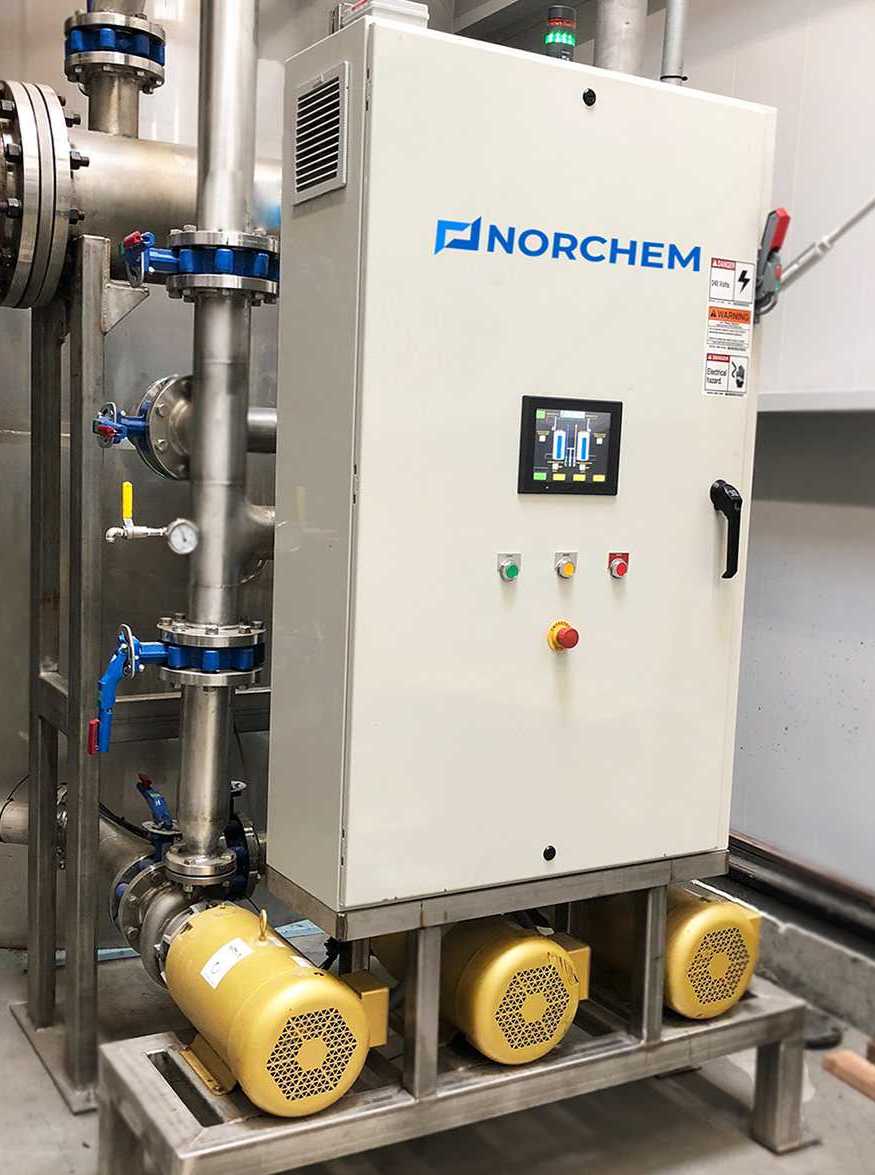

Pumping Systems
To deliver the water needed in order to process quickly and efficiently, a wide range of water pumping systems are available with the following features:
Technical Features
Stainless steel pre-piped pump skids
Single, dual, or triplex pump systems
1 hp – 60 hp pumps
Stainless steel pumps with stainless steel impellers
VFD’s to run pumps based on a set pressure to conserve energy. The pumps will run at low speed when low demand and high speed with high demand.
Butterfly or ball valve suction and discharge isolation valves
Temperature, pressure, TDS, and pH monitoring
UL-approved system controls
Industrial PC HMI Touchscreen Dashboard
wasteWater heat reclamation systems
Capture and reuse heat from the wastewater to then heat incoming city water that efficiently produces tempered water for production.
The cooling of wastewater is especially ideal for plants that chemically treat effluent water.
Our systems are designed and sized to fit any application.

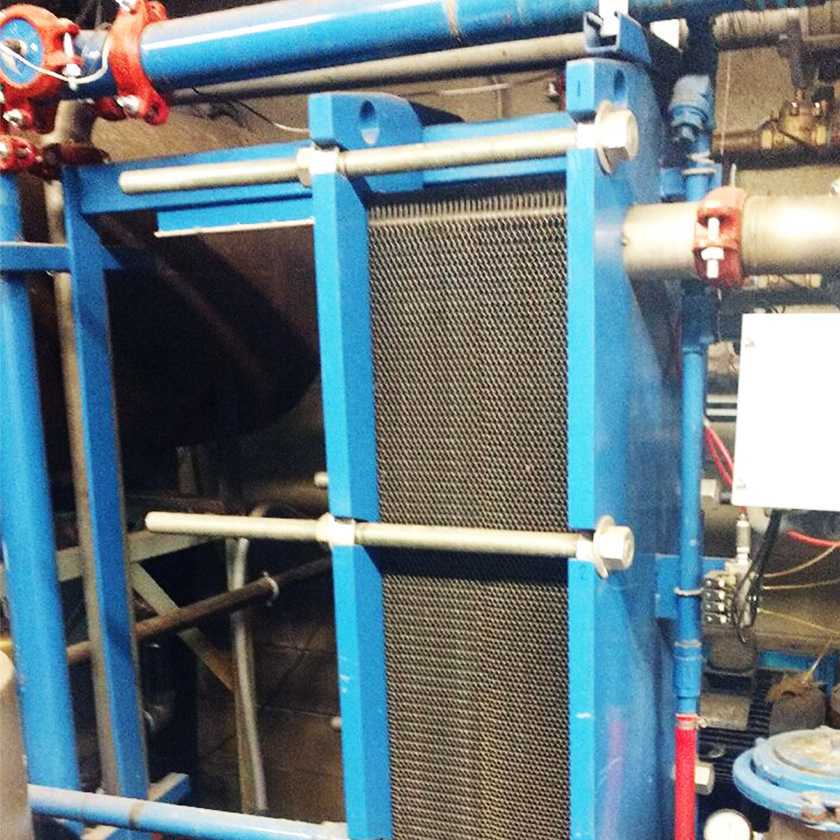

Plate and Frame Heat Exchangers
Stainless steel base and frame
Pre-piped with stainless steel and valves
Automated valves for backflush to prevent solids build up
CIP cleaning system to clean plates and maintain high performance
UL-approved panel pre-wired and mounted to the skid
Industrial PC HMI Touchscreen Dashboard

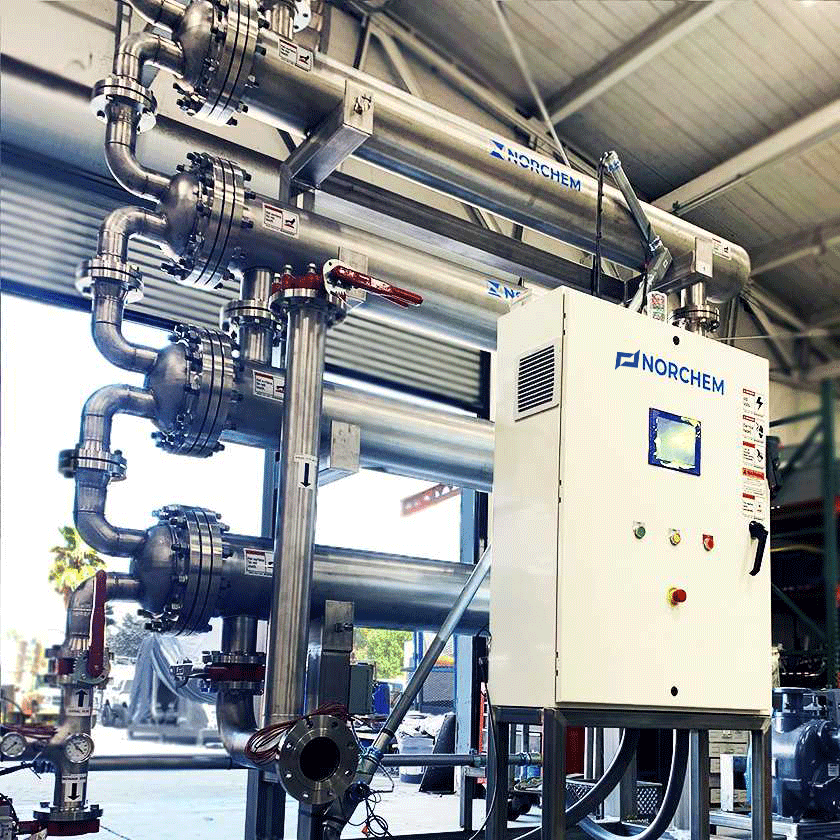

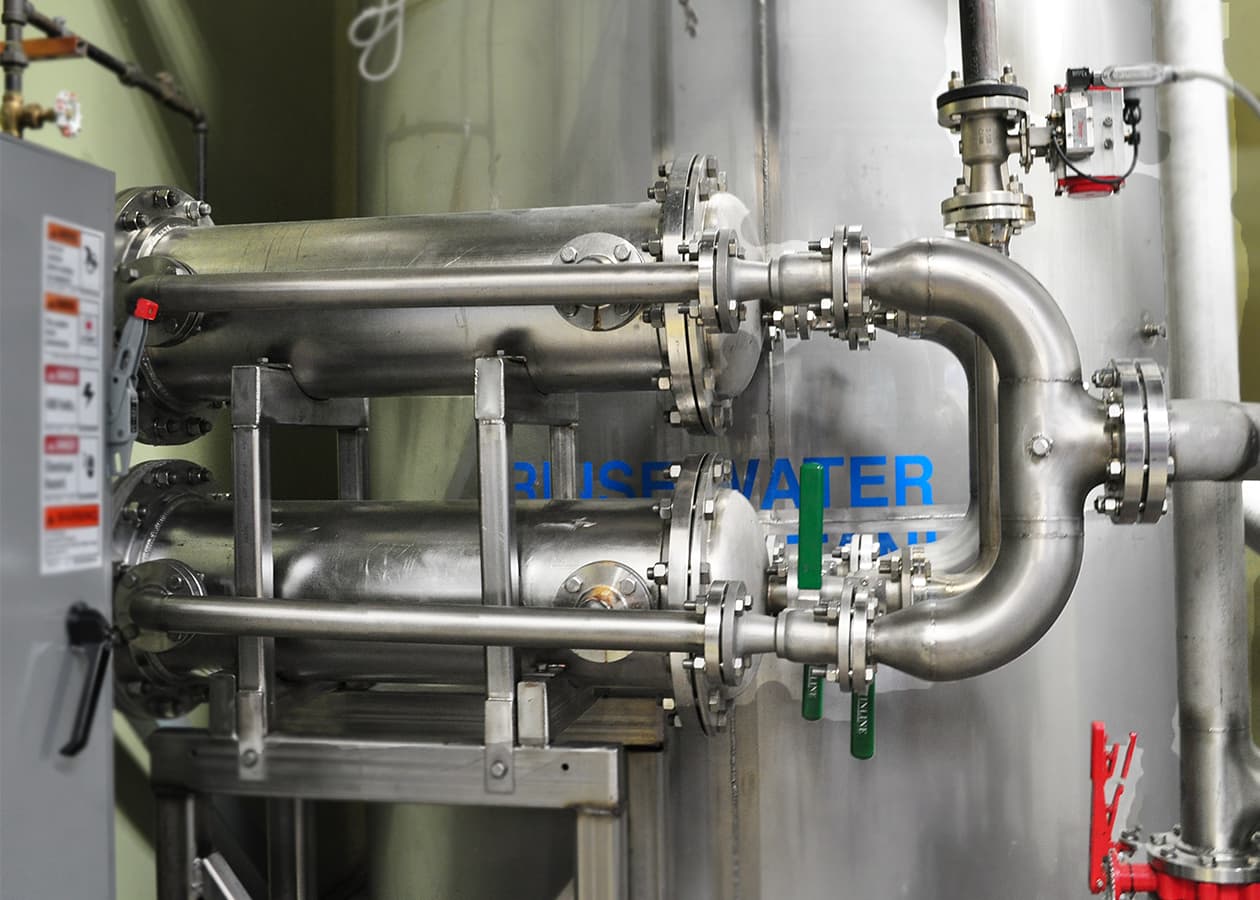

Shell and Tube Heat Exchangers
Stainless steel base and frame
Stainless steel shell and tubes
Pre-piped with stainless steel and valves
Automated valves for backflushing to prevent solids build up
CIP cleaning system to clean plates and maintain high performance
UL-approved panel pre-wired and mounted to the skid
Industrial PC HMI Touchscreen Dashboard
Additional water heating components are available and designed to custom fit applications

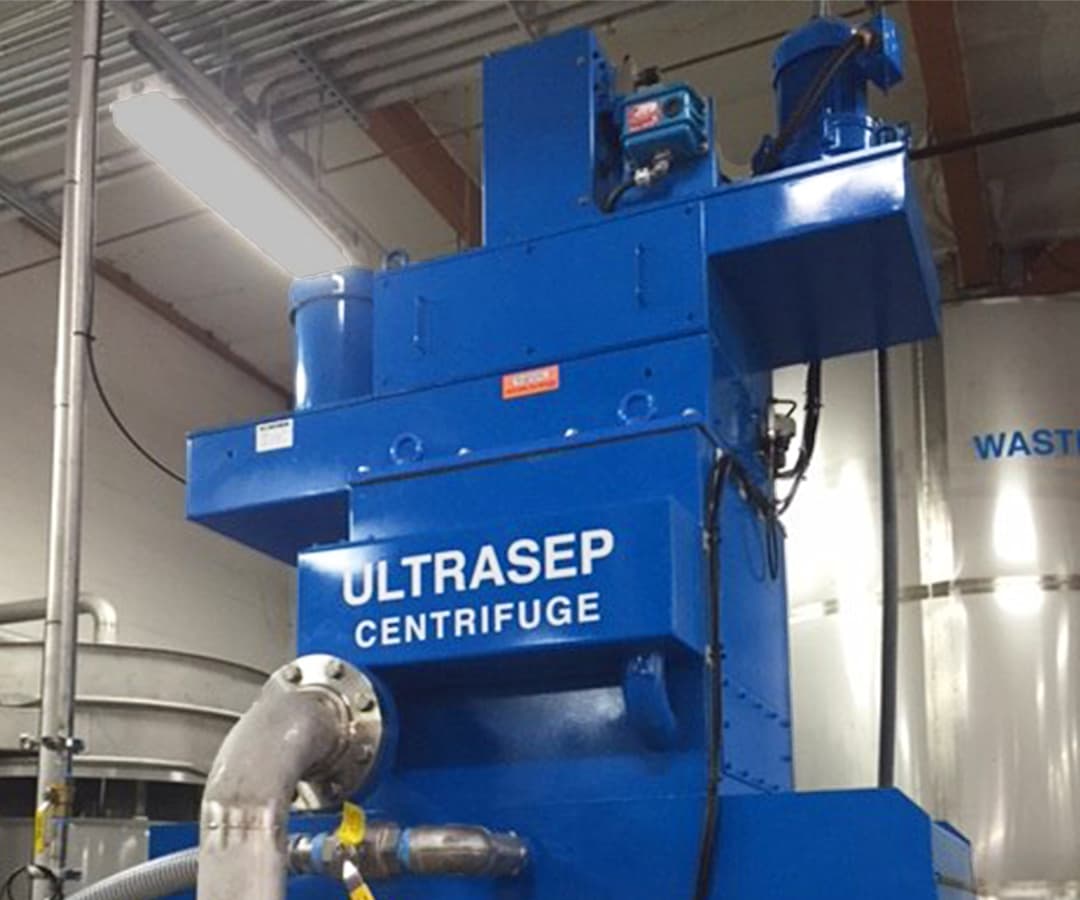

Process Solids Separators
Lots of sand and suspended solids? Separate them from the waste stream before you recycle with UltraPure®.
